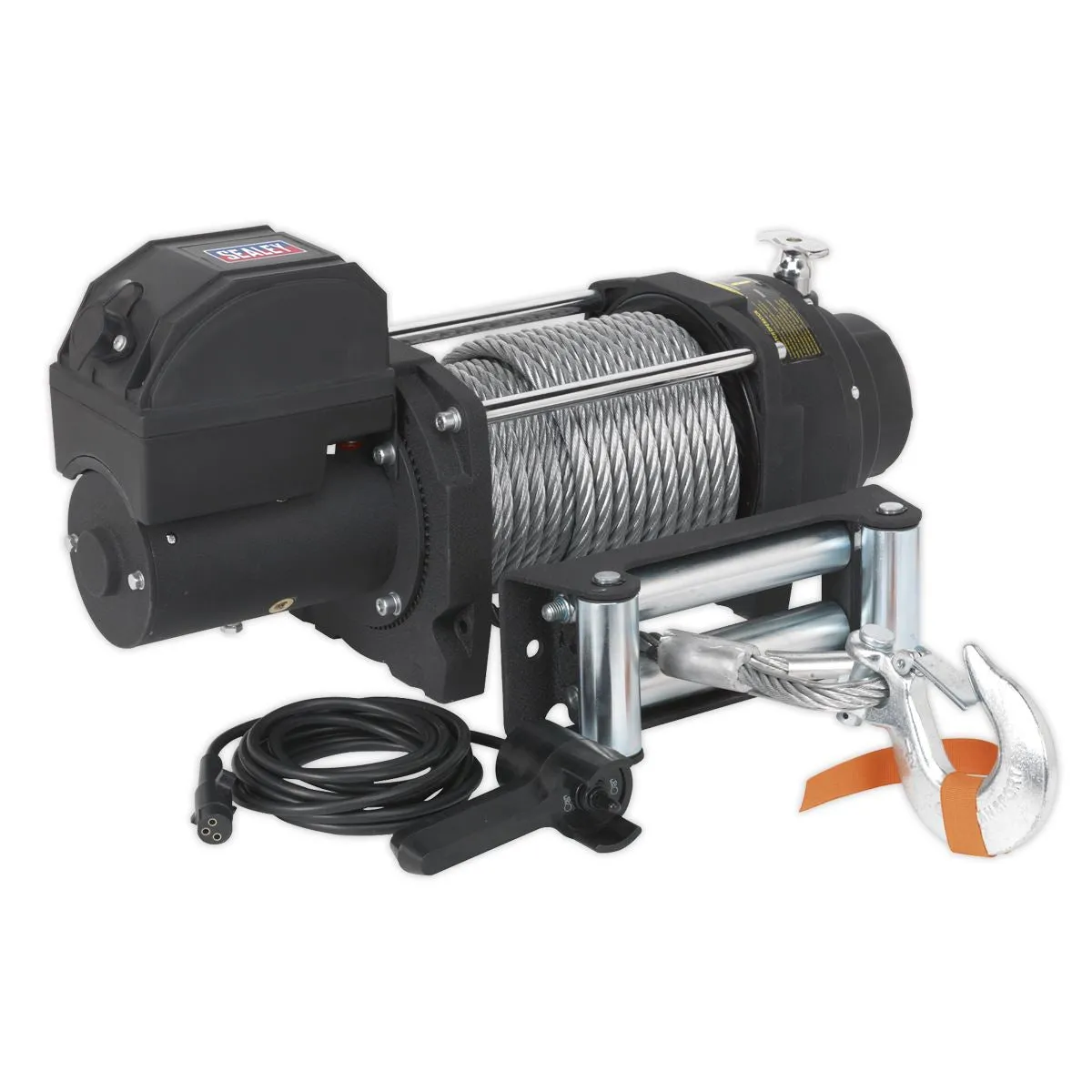

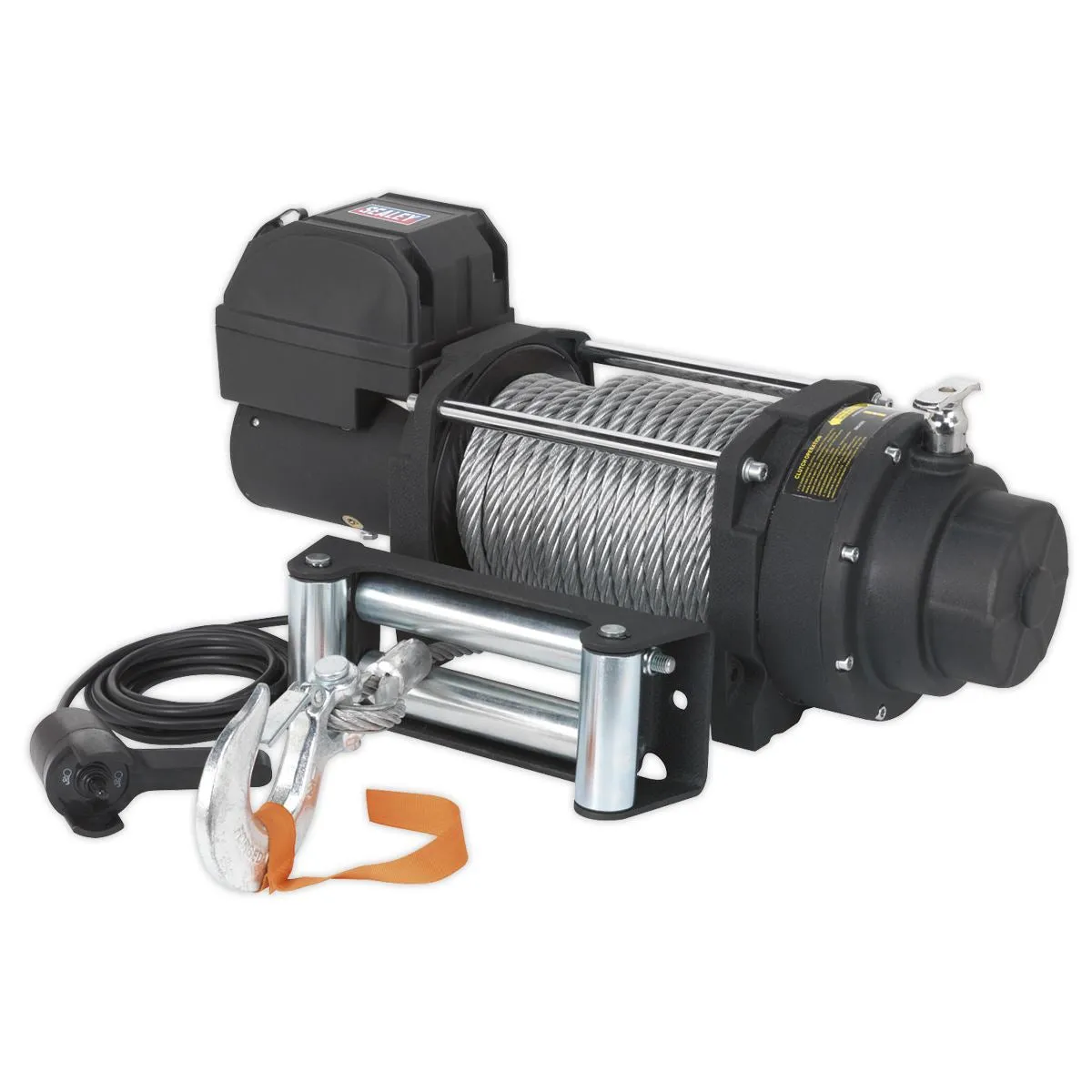

Sealey Premier Recovery Winch 8180kg(18000lb)Line Pull 12V Industrial
Suitable for industrial recovery and off-road use.
Designed and built with the toughest jobs in mind.
Heavy-duty all-weather housing.
High power 2.3kW 12V DC series wound motor gives first class pulling power.
4-Stage planetary gears using oversized components for greater torque plus 'in drum' brake.

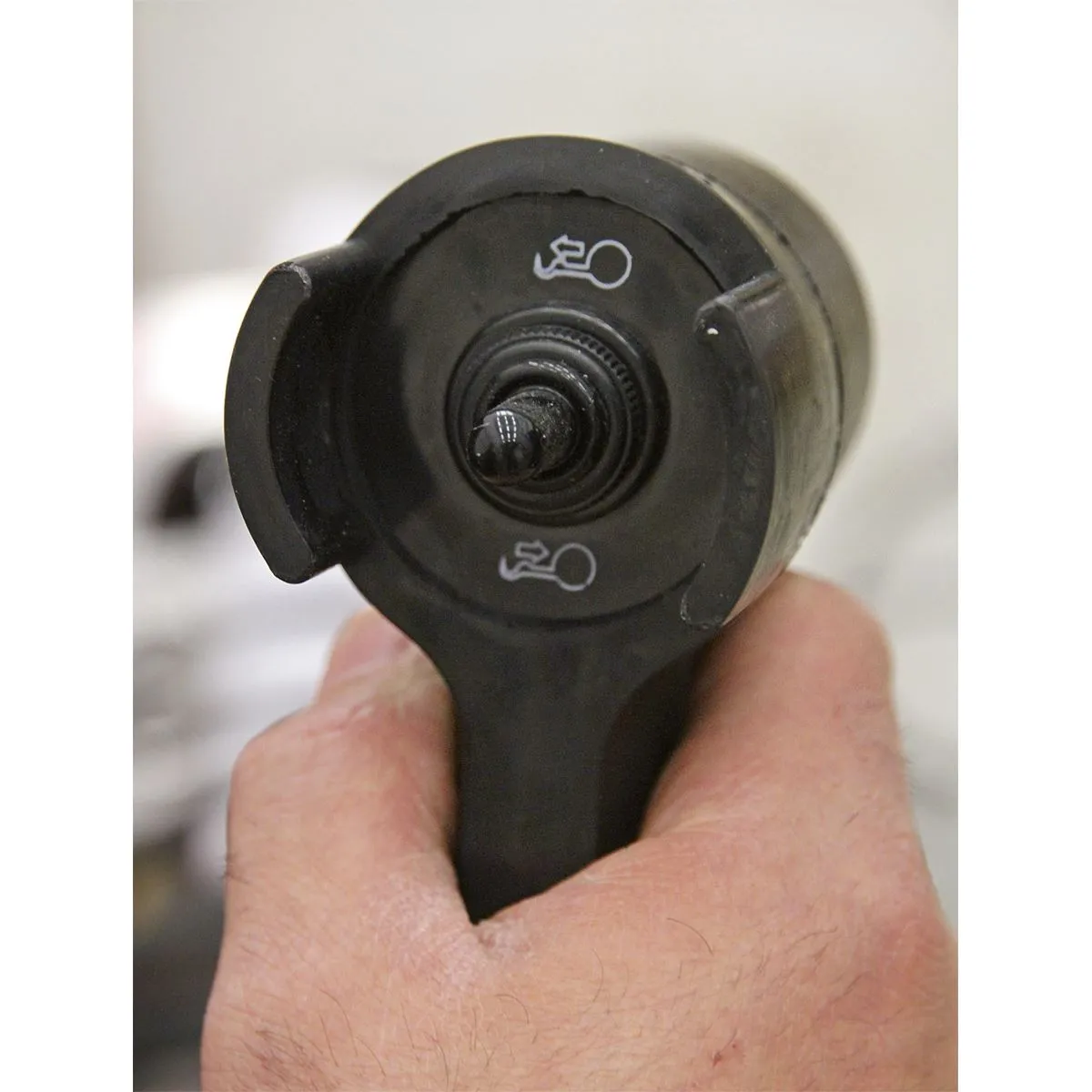

Remote control allows power in and power out of cable from a safe distance.
Ergonomic 'lift & turn' free spool clutches.
High quality wire rope with a 4-way roller fairlead for smooth and even distribution of cable onto drum.
Cable Length: 25m.
Line Pull*: 8180kg(18000lb).
Gear Ratio: 516:1.
3 Year Guarantee*.
Specification:
- Model No RW8180
- Brand: Sealey Premier
- Consumable Parts: RW8180.WR - Wire Rope (Ø13mm x 25m) for RW8180
- Current Draw: No-Load - 95A, Maximum Load - 420A
- Gear Ratio: 516:1
- Line Pull*: 8180kg(18000lb)
- Line Speed*: No Load - 3.5m/min, Maximum Load - 0.8m/min
- Motor Power: 2.3kW
- Nett Weight: 69kg
- Note: *Performance quoted at first layer of cable on drum
- Supply: 12V
- Wire Rope Diameter: 13mm
- Wire Rope Length: 25m
Catalogue Page: Page 1365
Downloadable Files:
- Instructions:
- Parts Diagram:
