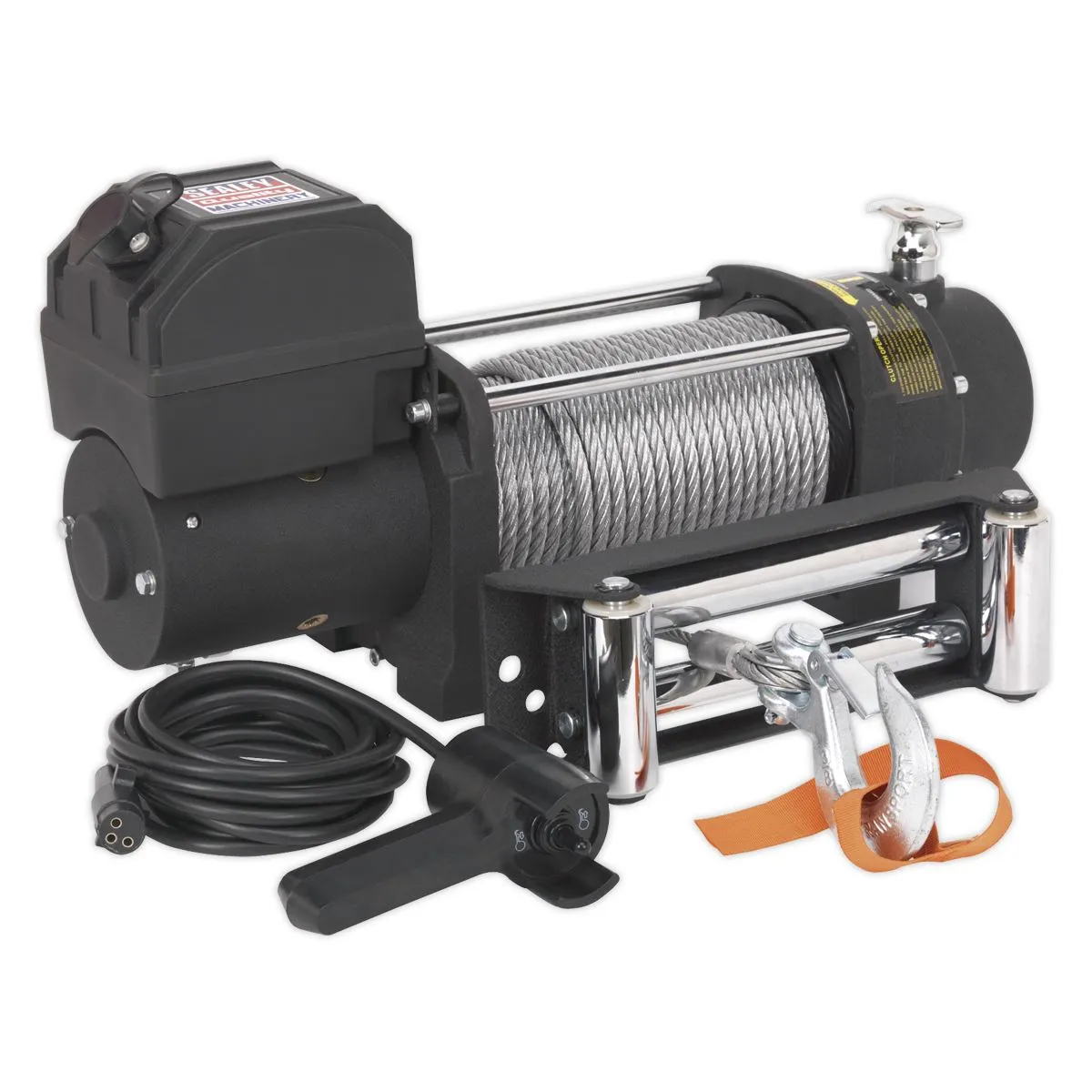

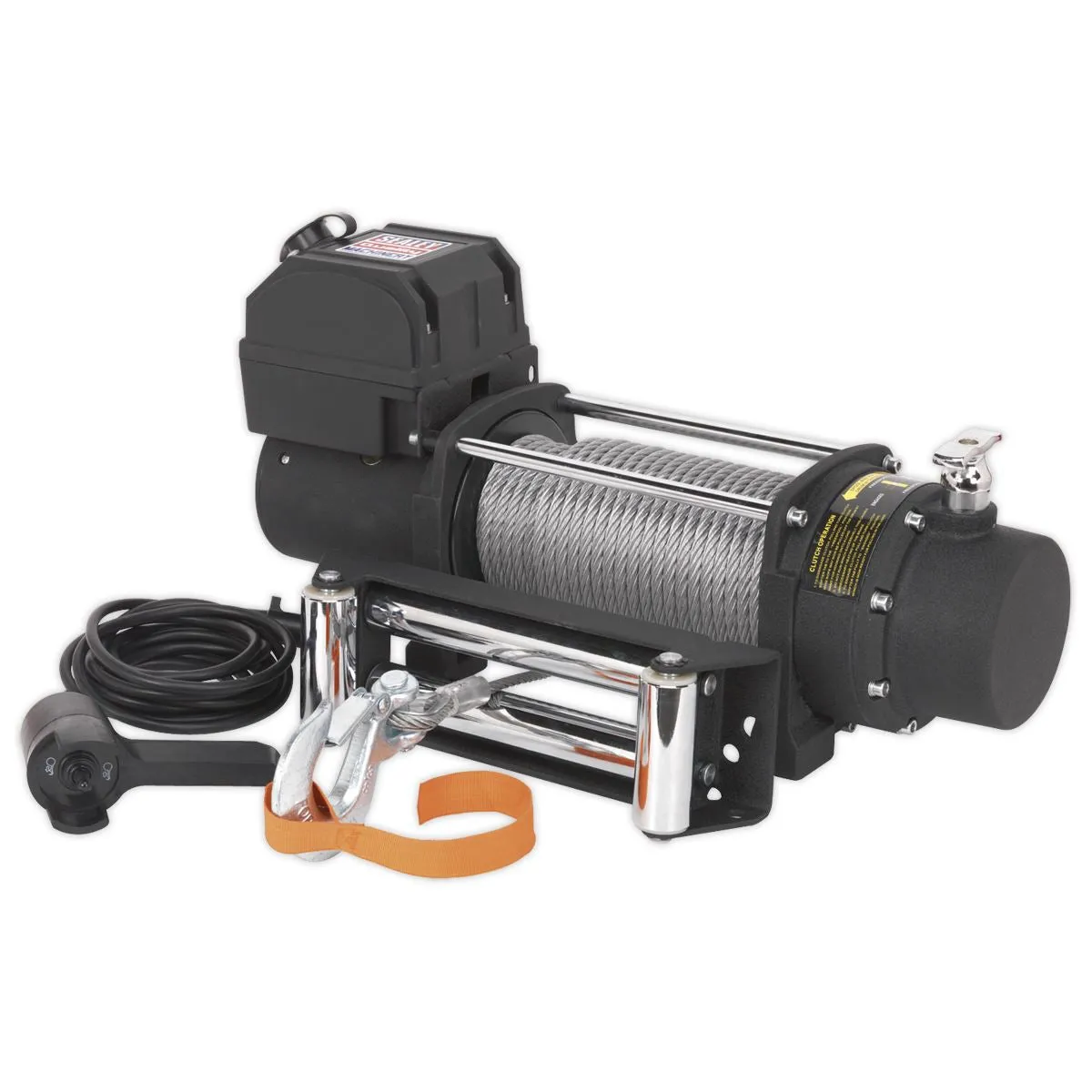

Suitable for self-recovery and off-road use.

Designed and built with the toughest jobs in mind.

Heavy-duty all-weather housing and solenoids.

High power 2kW 12V DC series wound motor gives first class pulling power.

3-Stage planetary gears using oversized components for greater torque plus mechanical braking.

Remote control allows power in and power out of cable from a safe distance.

Ergonomic 'lift & turn' free spool clutches.

High quality wire rope with a 4-way roller fairlead for smooth and even distribution of cable onto drum.

Cable Length: 26m.

Line Pull*: 5450kg(12000lb).

Gear Ratio: 196.6:1.

IP67 Ingress rated.

3 Year Guarantee*. *Performance quoted at first layer of cable on drum.

Specification:

• Model No SRW5450
• Brand: Sealey Premier
• Consumable Parts: SRW5450.WR, SRW5450.DR
• Current Draw: No-Load - 90A, Maximum Load - 460A
• Gear Ratio: 196.6:1
• Line Pull*: 5450kg(12000lb)
• Line Speed*: No Load - 4.3m/min, Maximum Load - 0.6m/min
• Motor Power: 2kW
• Nett Weight: 40.5kg
• Note: *Performance quoted at first layer of cable on drum
• Supply: 12V
• Wire Rope Diameter: 9.2mm
• Wire Rope Length: 26m

• Instructions:
• Parts Diagram:
